Description:

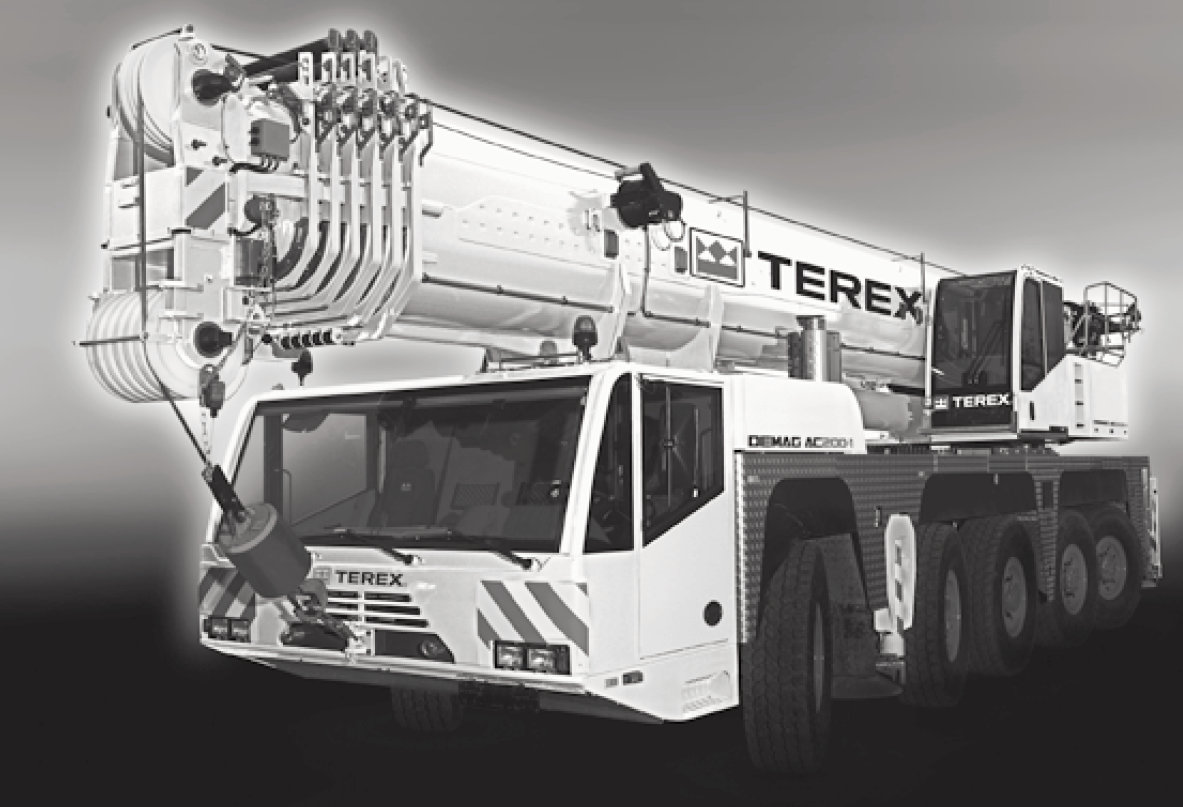

A powerful and versatile all-terrain crane the AC200 is known for exceptional lifting capabilities and manoeuvrability capabilities. This crane is suitable for heavy lifting tasks (max 200 tons) and is equipped with a telescopic main boom that extends up to almost 68 meters and can be extended with a variety of jib configurations.
Specifications:
- Self rigging 85m total system length
- 100m maximum system length with up to 33m extendable swing-away jib
- Shortest 200-tonner on 5 axles with 12.6m carrier length
- Most compact working area (outrigger base and tail radius) in its class
- 200 tonne crane
- 68 metres of main boom, plus 33 metres of fly jib
- MS panel jib to rotate panels/construction items
- off-setting fly jib 25°, 50°
- dual winches
- all wheel drive for rough terrain work
- all wheel steer, off wall, plus crab steering ability for confined spaces
- 360° lift radius
- setup area of 8.2m x 8.45m

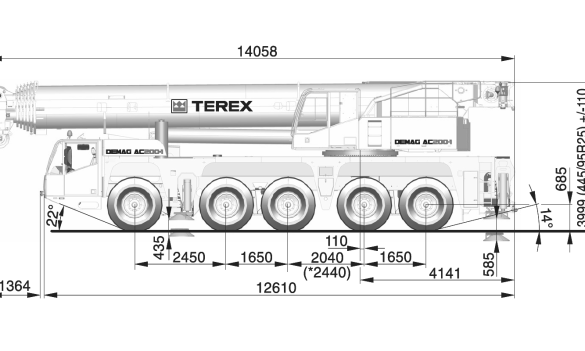

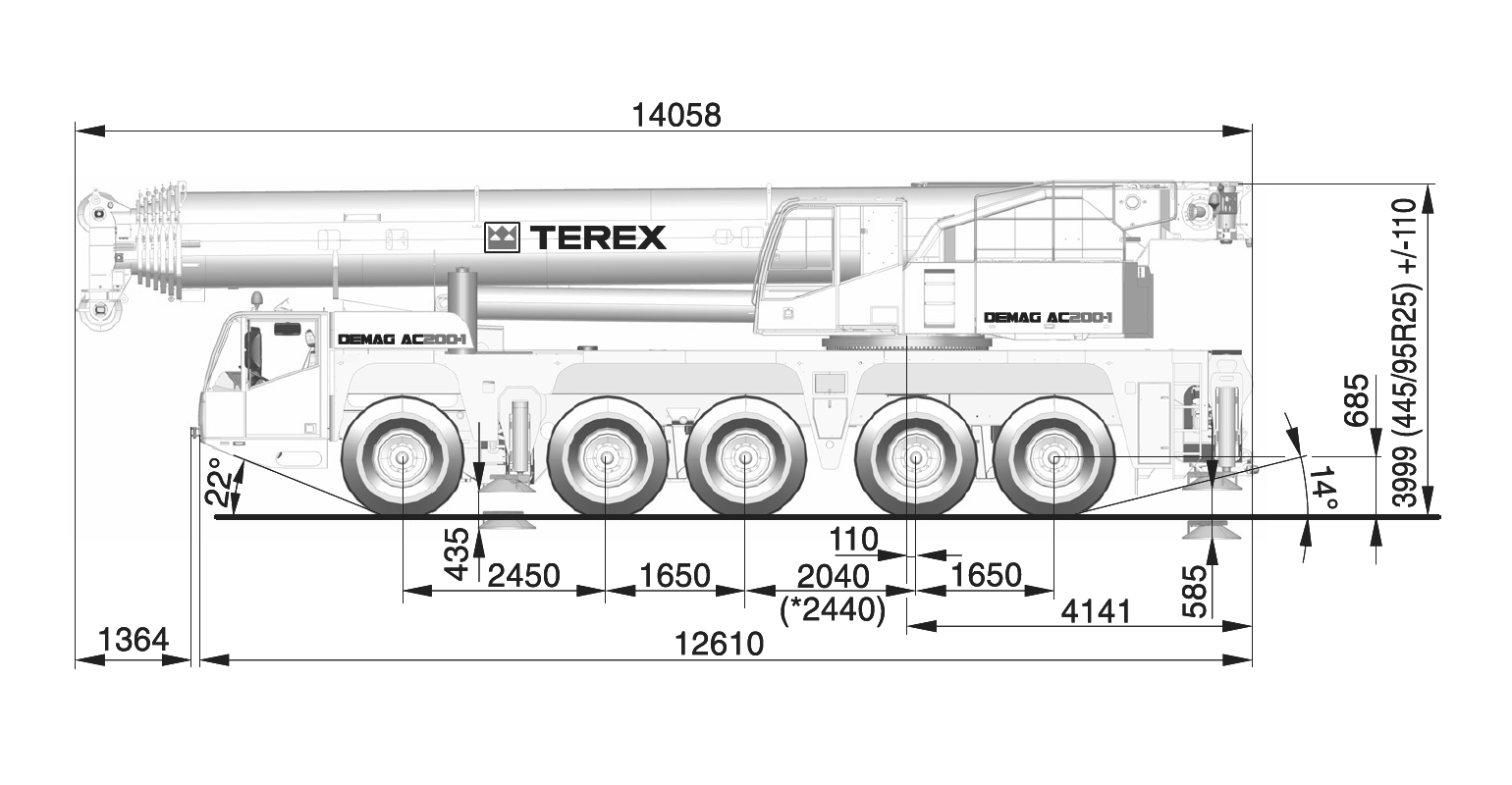

- 12.6m long x 3m wide in travel mode
